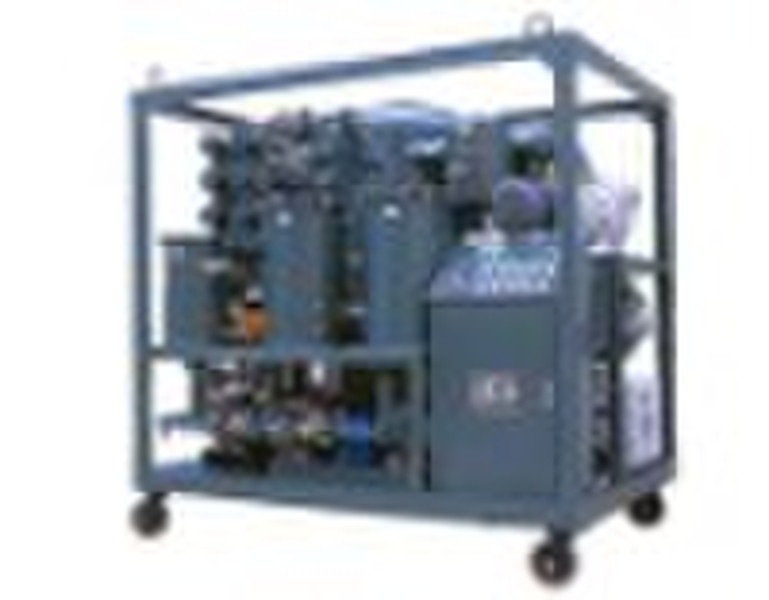

Series ZYD Double-Stage Vacuum Insulation Oil Puri

Technical parameters ItemUnit ZYD-30ZYD-50ZYD-100ZYD-150ZYD-200ZYD-250ZYD-300Flow L/min3050100150200250300Working vacuityMpa-0.06 -0.095Limit vacuity Pa≤5Working pressureMpa≤0.4Oil puncture voltageKv≥55Water contentMg/L≤5Gas content%≤0.1Mechanical impurities%NoneTemperature °C≤70Power supplyV/HZ380/50(at user’s option)Noise dB(A)≤65Total powerKW233553708095110Inlet(outlet) diameterDN25324242505060Weight kg4007509501300150018002000Appearance dimensionmm1100×800×14001600×100×11001700×1000×18001800×1000×19002000×1100×20002200×1200×22002300×1250×2300 Feature & Use 1,To be used for treatment to new oil, imported oil and super HV transformer oil, particularly applicable to 110KV power distribution system and the national grid, shortening the oil treating duration during installation and maintenance of transformer. 2,Based on the high efficient vacuum oil purifier, Roots vacuum booster system and secondary high vacuum separation system are added, which enable the vacuum limit reaching ≤5Pa. 3,Being able to remove water and gas fast and effectively under high vacuum and high speed operation status. Which achieves satisfactory dryness and could bring the breakdown voltage up to 70KW, resulting in an enhanced one-time filtration effect which reduces the oil aging problem existing with ordinary purifiers as caused by repeated heating. 4,Being able to remove the minimal amount of water and various gases in oil, thus ensuring zero acetylene existence. The Purifier can also serve as vacuum oil filler and dryer for transformer.
